SPINNER 7.7kW Cu (C7.1) (2017) - Spinner 7.7kW com...

This item was sold in one of our on-line Auctions / Sales.  We may have similar items available in our forthcoming Auctions, or if you have equipment to sell please contact us for free valuations, advice etc - Tel: 01778 590111 / Email: info@ppauctions.com or please get in touch with us via our contact page

SPINNER 7.7kW Cu (C7.1) (2017) - Spinner 7.7kW com...

Description

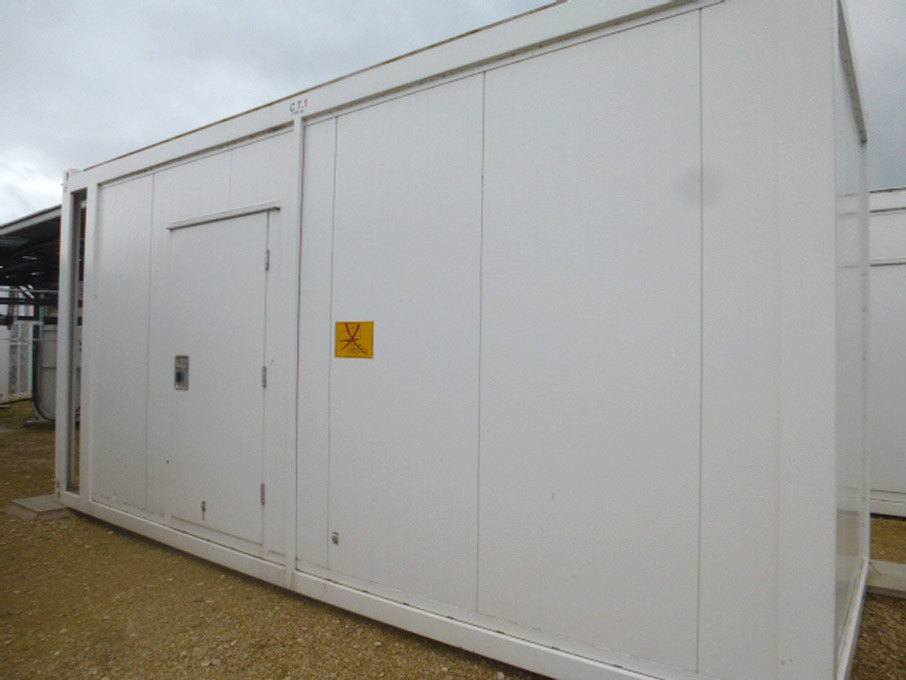

SPINNER 7.7kW Cu (C7.1) (2017) - Spinner 7.7kW combiner in a single climate controlled secure container inc: Spinner single six channel combiner unit capable of combining 6x 7.7kW channels with interconnecting feeders & output splitter / patch panel. Each combiner system consists of 6x single ended constant impedance combining modules feeding a splitter patch panel allowing either output or both outputs to be fed simultaneously. Can be tuned to any set of Channels within the UHF television band. Rohde & Schwarz rack for Antenna Monitoring & Protection (“AM&P”) equipment inc: power monitoring heads, data / measurement controllers & interlock marshalling modules, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions. (Located at Daventry, Northamptonshire)

Auction - Arqiva Ltd - 700MHz - Phase 3 Tender Sale

Transmitters
5x NEC 600W TX (N6, N7, N8, N16, N28) (2017)
NEC 600W TX each in a single climate controlled secured container inc: 6x NEC DTU-52 1+1 transmitter systems with interconnecting feeders to a six channel RFS (CA6PPXX80E) combiner, patch panel & splitter system and LV electrical distribution equipment, 600W max power. Each 1+1 transmitter system consists of two NEC DTUL10/R6S transmitters (exciter, controller & power amplifier) with associated coaxial switch and test loads. Configurable to DVB-T, DVB-T2, MFN or SFN mode. 6.055m (L) x 2.890m (W) x 2.936m (H) approx dimensions.

2x R&S 3kW TX (N12, N13) (2017)
Rohde & Schwarz 3kW TX in a single climate controlled secure container inc: 4x R&S THU-9 transmitters (in a 3+1 configuration – each transmitter consisting of 1x exciter & 3x power amplifier modules), 3kW max power, DVB-T & T2 capable, single frequency network (using enabled GPS option in exciters), transmitter cooling & heat exchangers and A/B power distribution. Spinner rack feeder switch unit containing two RF switches per service; one for 3+1 transmitter changeover and one for main / reserve antenna selection with automatic antenna control system, 6.055m (L) x 2.438m (W) x 2.970m (H) approx dimensions.

4x R&S 7kW TX (N17, N19, N20, N22) (2017)
Rohde & Schwarz 7kW TX in a single climate controlled secure container inc: 4x R&S THU-9 transmitters (in a 3+1 configuration – each transmitter consisting of 1x exciter & 6x power amplifier modules), 7.7kW max power. DVB-T & T2 capable, single frequency network (using enabled GPS option in exciters), transmitter cooling & heat exchangers and A/B power distribution. Spinner rack feeder switch unit containing two RF switches per service; one for 3+1 transmitter changeover and one for main / reserve antenna selection with automatic antenna control system. 6.055m (L) x 2.438m (W) x 2.970m (H) approx dimensions.

6x NEC 12kW TX (N23, N25, N27, N29, N26, N33) (2017)
NEC 12kW TX each in a dual climate controlled secure containers inc: 3x NEC DTU-52 transmitters (DDSA configuration - each transmitter consisting of 2x exciters & 10x power amplifier modules), 12.0kW max power, DVB-T & T2 capable, single frequency network (using enabled GPS option in exciters), transmitter cooling & heat exchangers and A/B power distribution. Spinner rack feeder switch unit containing three RF switches, one per service, for main / reserve antenna selection with an automatic antenna control system. Main’ Container: 6.055m (L) x 2.890m (W) x 2.936m (H) approx dimensions. Smaller container housing heat exchanger skid: 4.8m (L) x 2.4m (W) x 1.4m (H) approx dimensions.

NEC 15kW TX (N24) (2017)
NEC 15.1kW TX each in a dual climate controlled secure containers inc: 3x NEC DTU-H10 transmitters (DDSA configuration - each transmitter consisting of 2x exciters & 12x power amplifier modules), 15.1kW max power, DVB-T & T2 capable, single frequency network (using enabled GPS option in exciters), transmitter cooling & heat exchangers and A/B power distribution. Spinner rack feeder switch unit containing three RF switches, one per service, for main / reserve antenna selection with an automatic antenna control system. Main’ Container: 6.055m (L) x 2.890m (W) x 2.936m (H) approx dimensions. Smaller container housing heat exchanger skid: 4.8m (L) x 2.4m (W) x 1.4m (H) approx dimensions.

2x LTV Flyaway TX (F1 & F3) (2017)
Tryo 200W DVB-T/DVB-T2 transmitter System inc: single equipment
rack, 2200x800x600mm - comprises of 1+1 transmitter system (MC2-R-200/UHF/T2/PA2U) with duplicated transmitters & changeover system. Configurable to DVB-T, DVB-T2, MFN or SFN mode. Maximum transmitter output 200W pre output filter. Each 1+1 transmitter system consists of a single exciter and a single 200W amplifier. A common control system, ASI distribution, Cisco Switch, output filter, dummy load, DB Broadcast, Merlin check receiver and duplicated mains distribution.

Combiners
2x SPINNER 3.3kW Cu (C3.15, C3.16) (2017)
Spinner 3.3kW combiner in a single climate controlled secure container inc: Spinner single six channel combiner unit capable of combining 6x 3.3kW channels with interconnecting feeders & output splitter / patch panel. Each combiner system consists of 6x single ended constant impedance combining modules feeding a splitter patch panel allowing either output or both outputs to be fed simultaneously. Can be tuned to any set of Channels within the UHF television band. Rohde & Schwarz rack for Antenna Monitoring & Protection (“AM&P”) equipment inc: power monitoring heads, data / measurement controllers & interlock marshalling modules, 6.055m (L) x 2.435m (W) x2.6m (H) approx dimensions.

4x SPINNER 7.7kW Cu (C7.1, C7.2, C7.5, C7.6) (2017)
Spinner 7.7kW combiner in a single climate controlled secure container inc: Spinner single six channel combiner unit capable of combining 6x 7.7kW channels with interconnecting feeders & output splitter / patch panel. Each combiner system consists of 6x single ended constant impedance combining modules feeding a splitter patch panel allowing either output or both outputs to be fed simultaneously. Can be tuned to any set of Channels within the UHF television band. Rohde & Schwarz rack for Antenna Monitoring & Protection (“AM&P”) equipment inc: power monitoring heads, data / measurement controllers & interlock marshalling modules, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions.

2x SPINNER 12kW Cu (C12.8, C12.9) (2017)
Spinner 12kW combiner in single climate controlled secure container inc: Spinner single 6 channel combiner unit capable of combining 6x 12kW channels with interconnecting feeders & output splitter / patch panel. Each combiner system consists of 5x single ended constant impedance combining modules feeding a parallel pair of final constant impedance combining modules - also a pump rack and associated equipment for a liquid cooling system. Can be tuned to any set of Channels within the UHF television band. Rohde & Schwarz rack for Antenna Monitoring & Protection (“AM&P”) equipment inc: power monitoring heads, data / measurement controllers & interlock marshalling modules, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions.

Test loads
SPINNER 3.3kW TL (TL3.15/3.16) (2017)
Twin Spinner 3.3kW test load in a single climate controlled secure container inc: 4x Spinner independent water cooled wide band test loads with pumps, reservoirs & external heat exchangers in an integrated caged enclosure, rated at 10kW per test load, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions.

2x SPINNER 7.7kW TL (TL7.1/7.2, TL7.5/7.6) (2017)
Spinner 7.7kW test load in a single climate controlled secure container inc: 4x Spinner independent water cooled wide band test loads with pumps, reservoirs & external heat exchangers in an integrated caged enclosure, rated at 23kW per test load, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions.

2x SPINNER 12kW TL (TL12.1, TL12.2) (2017)
Spinner 12kW test load in a single climate controlled secure container inc: 2x Spinner independent water cooled wide band test loads with pumps, reservoirs & external heat exchangers in an integrated caged enclosure, rated at 36kW per test load, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions.

Miscellaneous
10x Programme Input Equipment (PIE) P18 in 19” rack capable of maintaining 3x multiplex services, (2 racks conjoined can provide six multiplex services) - PIE rack contains: 2x dB Broadcast Cardinal iMDU’s, 2x dB Broadcast Hawkeye frames containing: 10x iQSA10 Distribution amplifiers, 2x iQSA182 ASI near seamless switches, 4x Hawkeye PSUs, 1x Advantech AMT75 Satellite receiver, 1x R&S DVMS4, 4x Evertz PSU’s, 2x Evertz 3405 Crates with 6 SFP’s installed, 1x Borri B400 UPS & 2x Cisco 24 port Ethernet switches (2018)

Empty climate controlled secure container with built in air conditioning, heating and lighting, 6.055m (L) x 2.435m (W) x 2.6m (H) approx dimensions (TL12.9) (2017)
